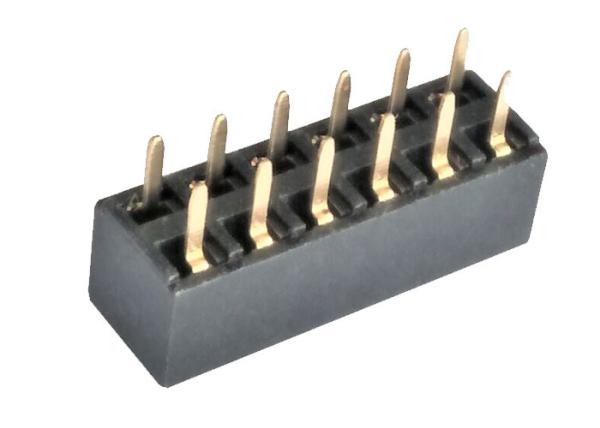

Double Row Female Header Connector 2.54mm 180 Degree PA9T Gold Flash
| Product Name | female header connector |
| Pitch | 0.8mm,1.0mm,1.27mm,2.0mm,2.54mm,3.96mm,5.08mm |
| Detail | DIP,SMD,90 degree,180 degree |
| Housing | PA6T/PA9T/LCP+30%G.F UL94V-0 |
| Insulator Height for Choice | 3.50mm ,3.60mm ,4.50mm ,5.00mm ,5.70mm ,5.90mm ,6.00mm ,6.80mm ,6.90mm ,7.10mm ,7.20mm ,7.50mm ,8.40mm ,8.50mm ,8.60mm ,11.0mm |
| Pin | 02~80P |
| Contact Material | Phosphor Brass,Brass |
| Insulator Material | PBT,PA6T,PA9T,LCP,PA66,PA46,PPS,PA115(Halogen Free) |
| Rating Current | 2.00AMP |
| Contact Resistance | 30mΩ Max |
| Withstanding Voltage | AC 1000V/Minute |
| Insulating Resistance | 1000MΩ Min |
| Temperture Range | -40°C to +105°C |
| Plating | Gold(Au) or Tin(Sn) plated over Nickel(Ni) |
| Packaging | PE Bag,Tube,Tape&Reel,Tube+CAP,Tray,Plastic Box |
Description
1. Female header connector is a kind of connector.
2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
3. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
